Transformer Racks
TR1-1
Electrical components can be accessed by one or individual interlocked doors.
TR1-2

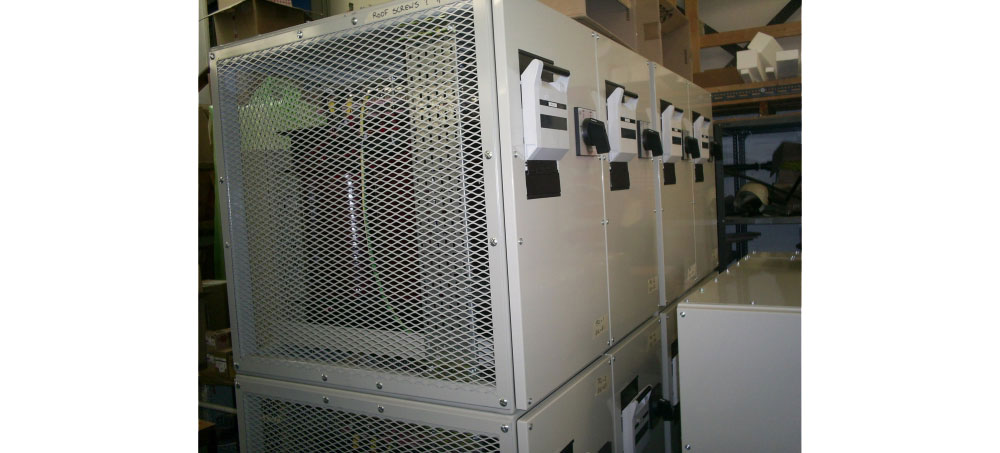

Each Transformer Rack can accommodate up to six transformers which allows room for maintenance.(Here shown with side guards removed).
TR1-3

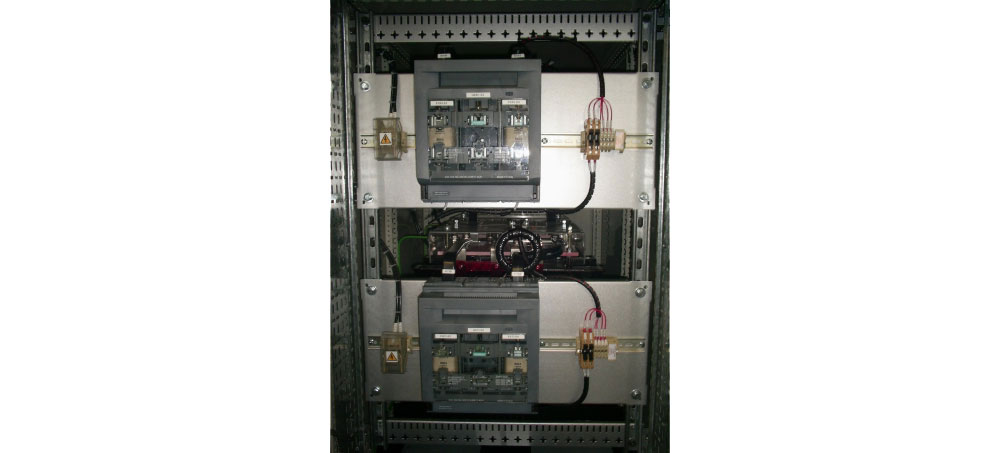

Electrical components can be mounted on seperate mounting plates to enable easy replacement or upgrade.
TR1-4

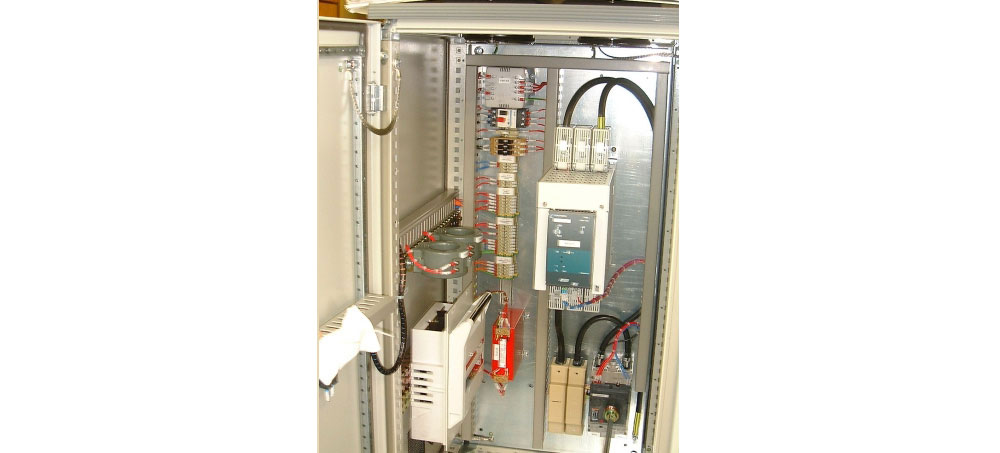

An example of an SCR control panel.
TR1-5

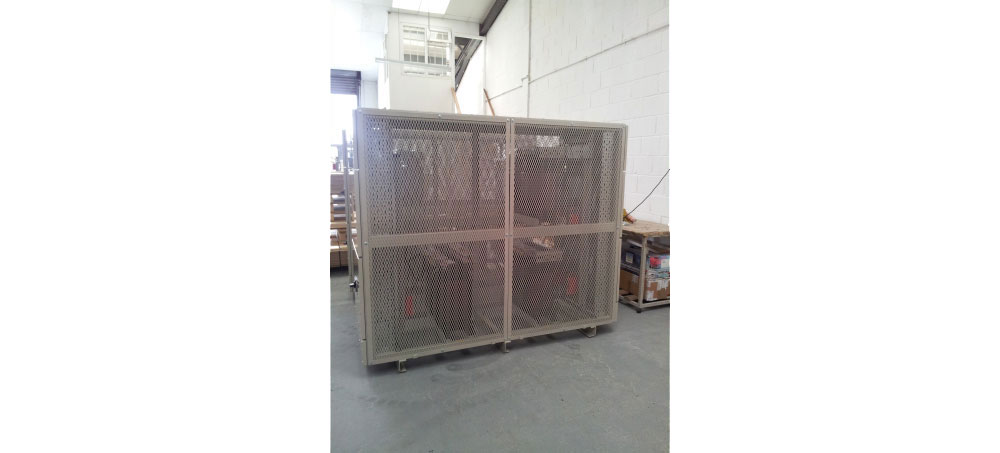

The frames can either be manufactured from modular panel components or purpose made to customer requirements. The meshed side panels act as a guard against direct contact, and assist the air cooling of the transformers.
TR1-6

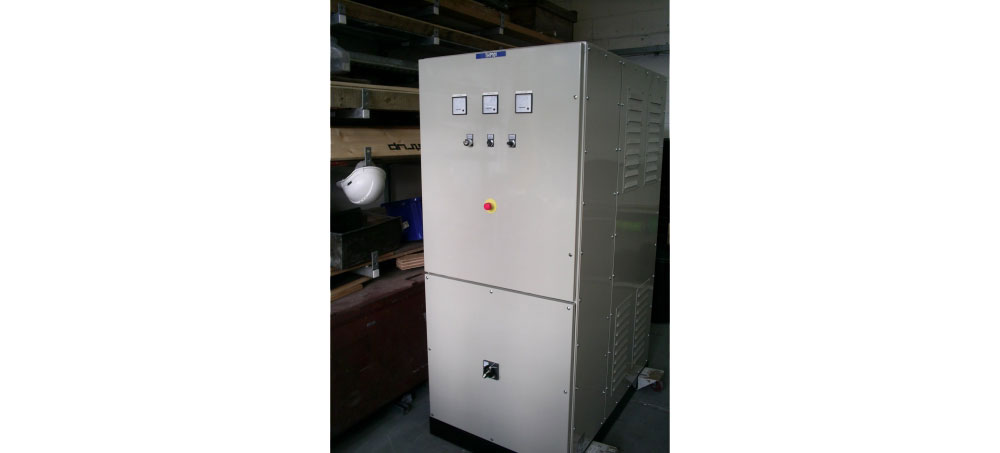

View showing the front of a finished rack. The Isolators for each zone have door interlocks and are suitable for the use of padlocks, for safe maintenance work to be carried out on external equipment.
TR1-7

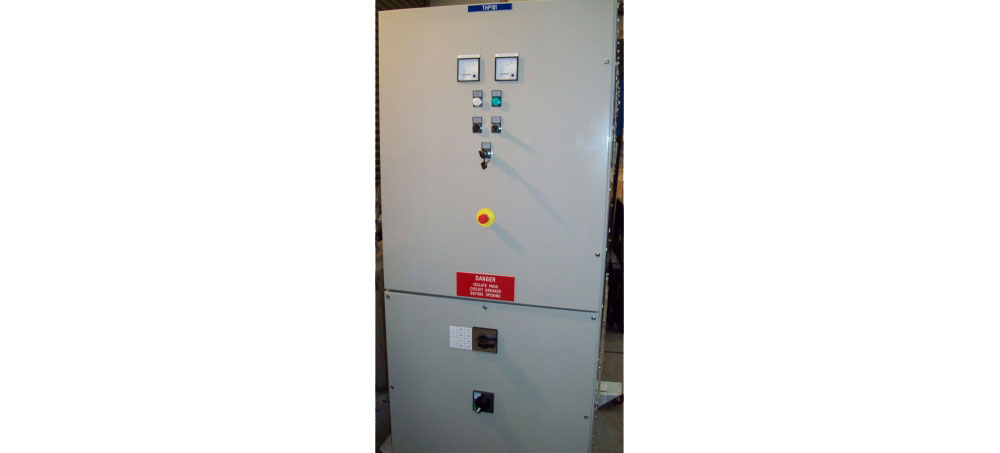

Throat Panel Front.
TR1-8

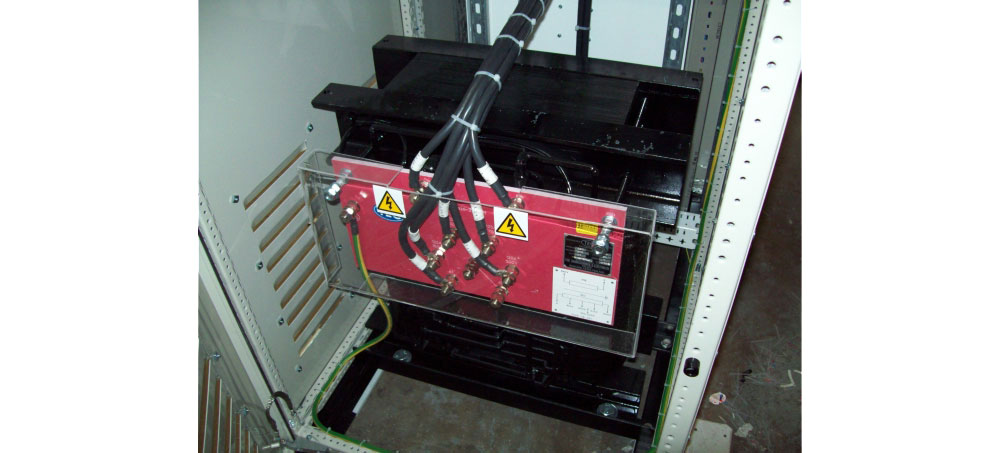

Throat Transformer.
TR1-9

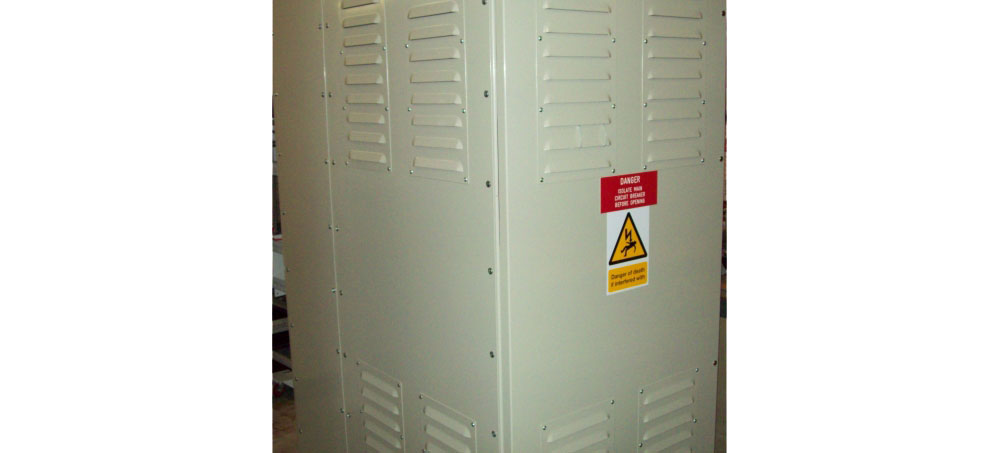

External throat panel ventilation.
