Control Boxes
VCP1
Internal view of a 3 phase Varivolt Control Box with HMI.

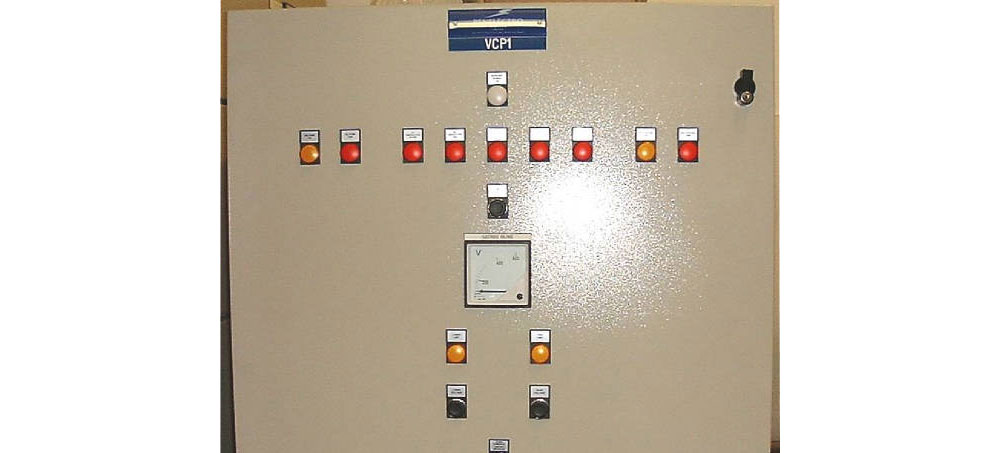

VCP1-1
Another type of Transformer Control Box.

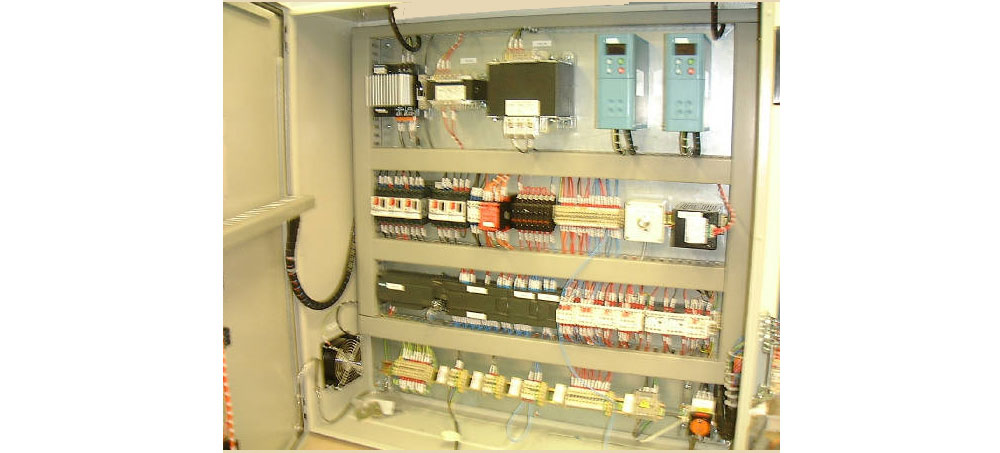

OCP1
An oscilating Batch Charger Control Box with HMI & Siemens S7-200 control.

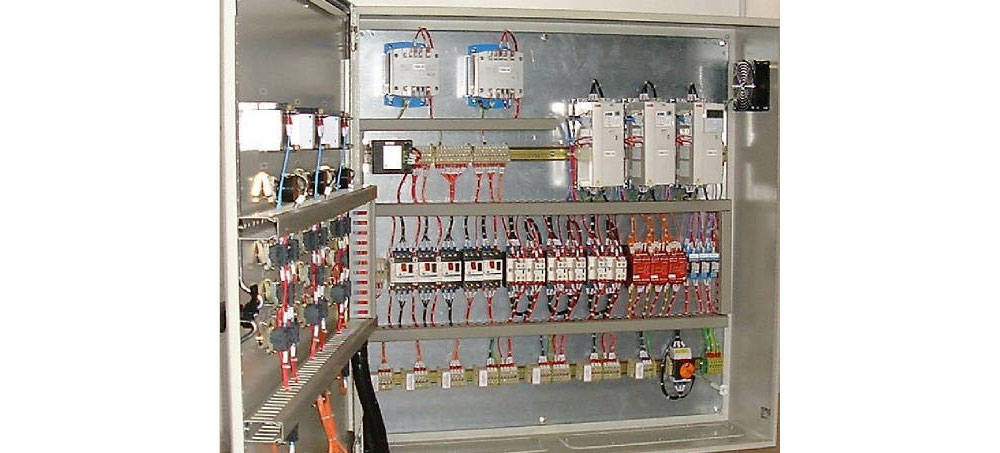

SCP1
Stirrer Control Panel to control three sets of stirrer paddles

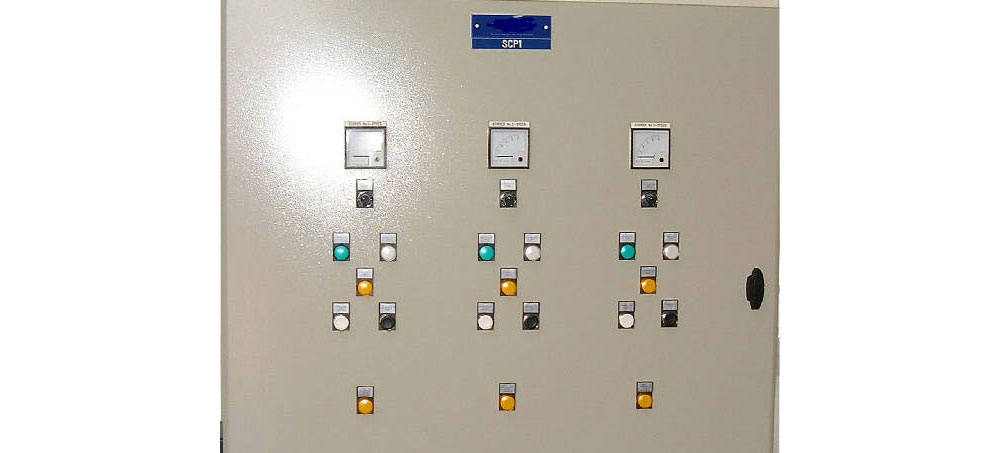

SCP1-2
Stirrer Control Panel external view.

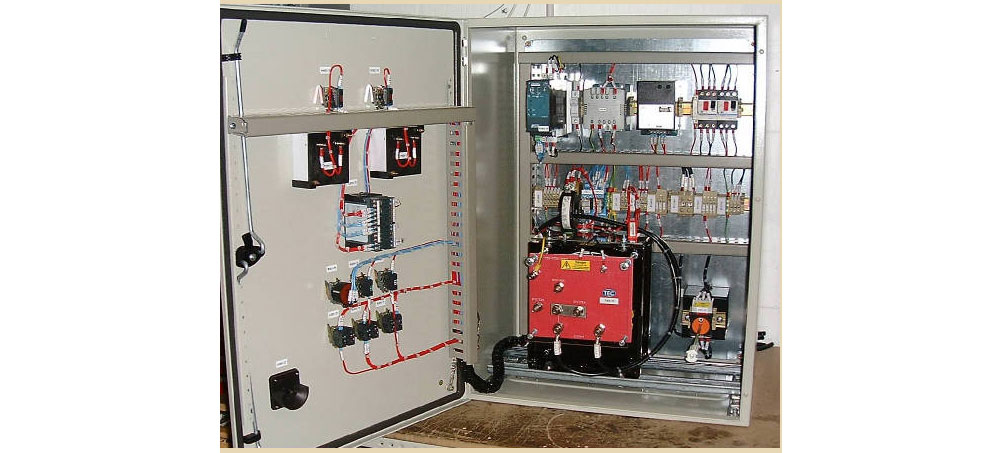

DCP1
A Furnace Drain Panel housing a 2.8KVA control transformer.
DC Plating Unit
A portable DC Plating Unit for site or permanent use.

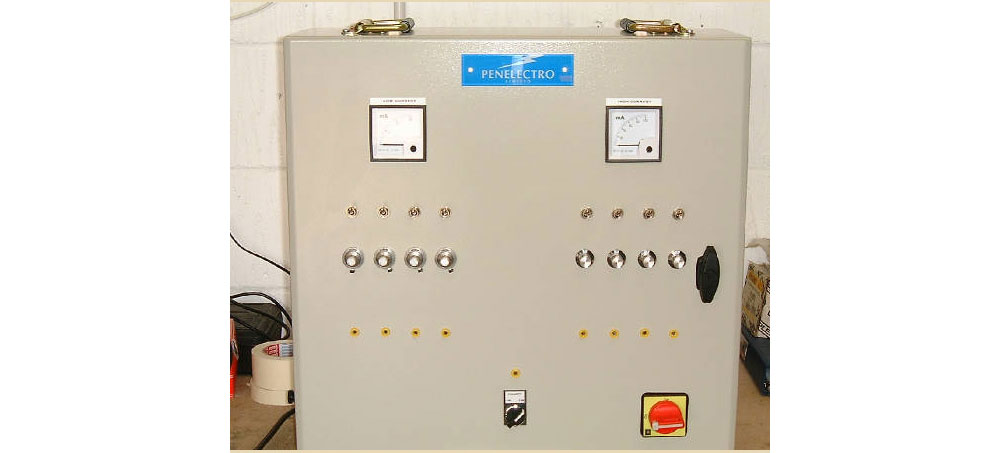

DC Plating Unit
The external view of a DC Plating Unit

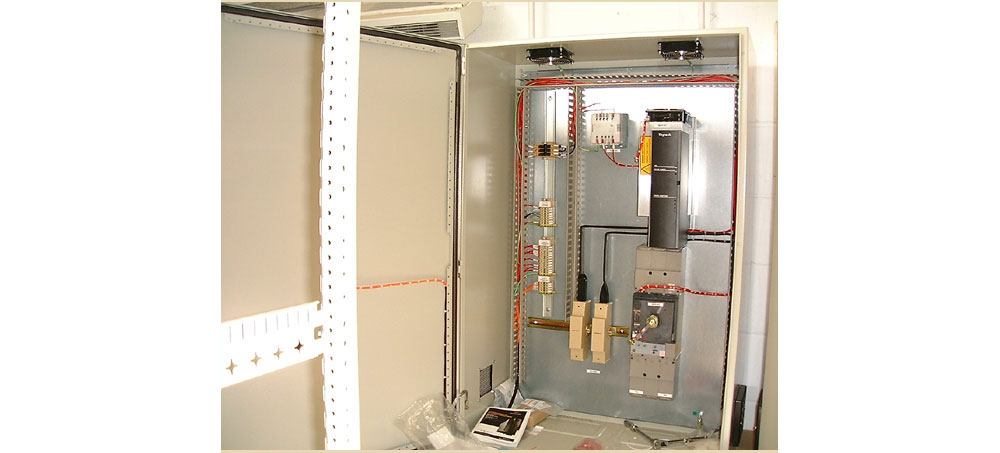

SCR1101
An SCR panel under final construction.
