Distribution Panels
PP1-1
Power distribution panel for single transformer control.

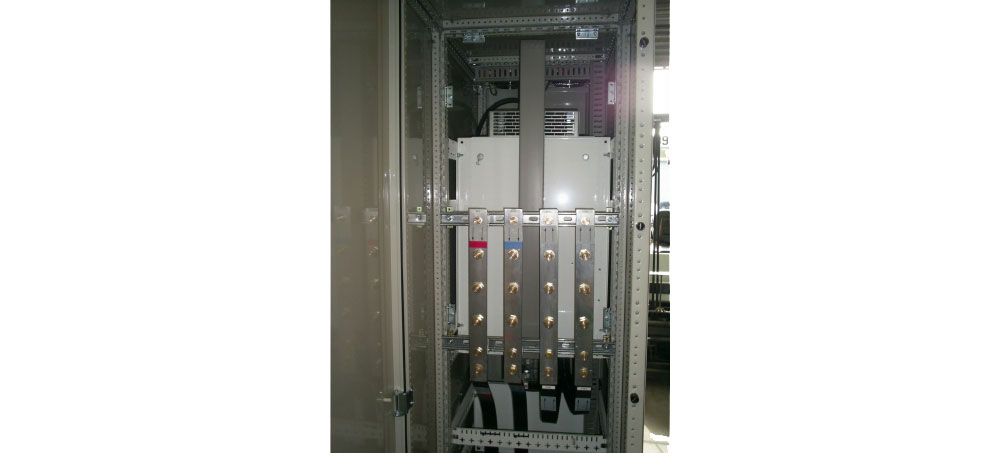

PP1-2
Internal Bus-Bar connections.

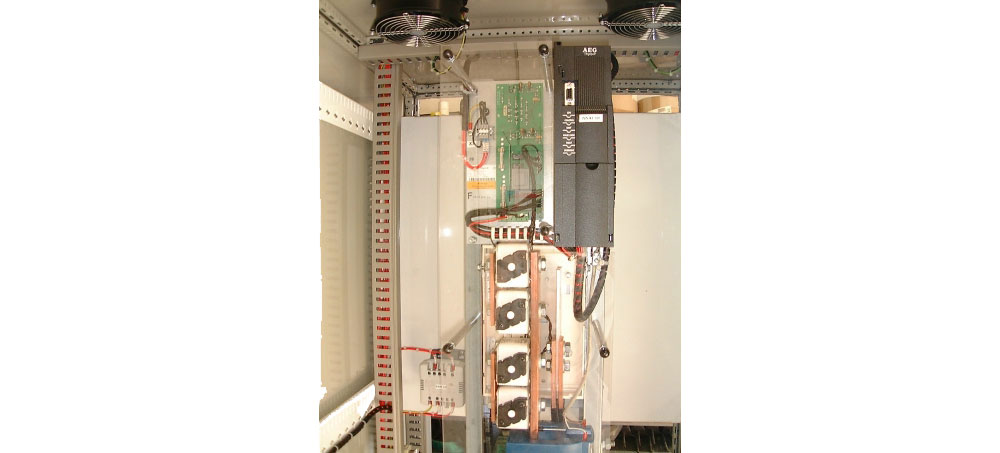

PP1-3
Internal layout of an SCR panel.

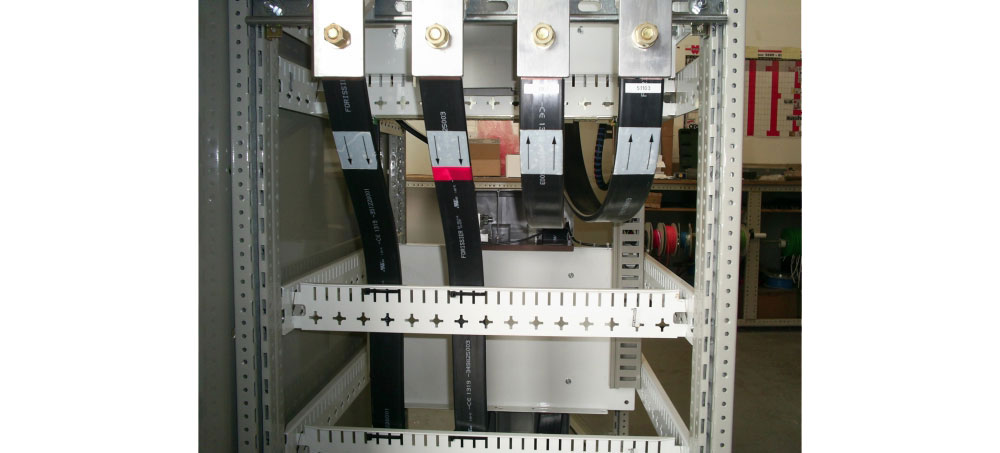

PP1-5
Utilising flexible Bus-Bars.

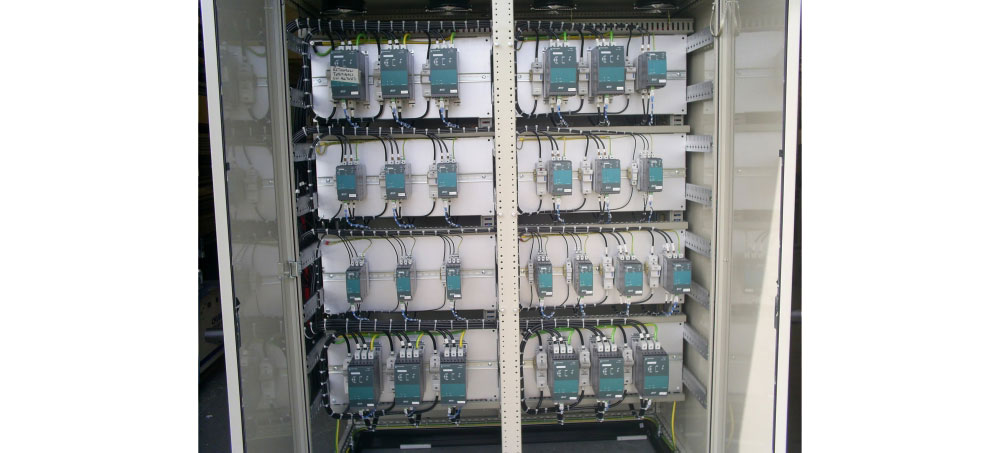

PP1-6
Internal layout of zone thyristors.

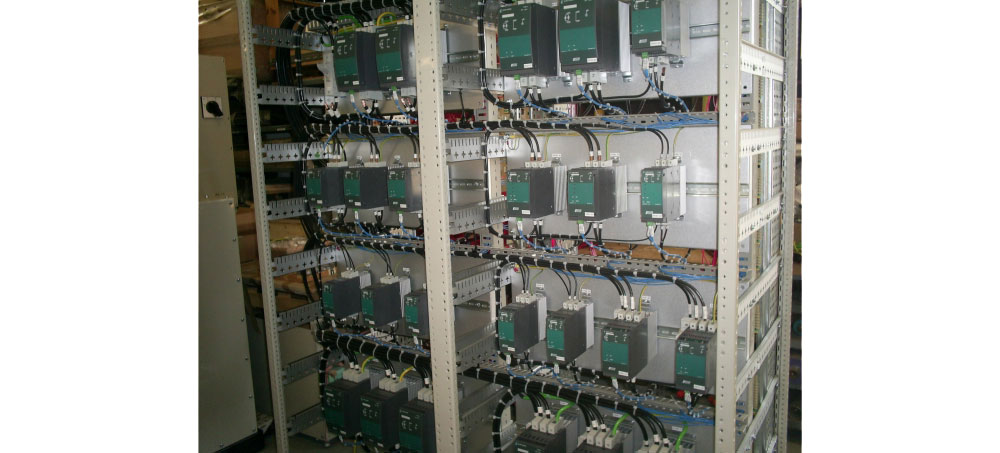

PP1-7
Internal layout.

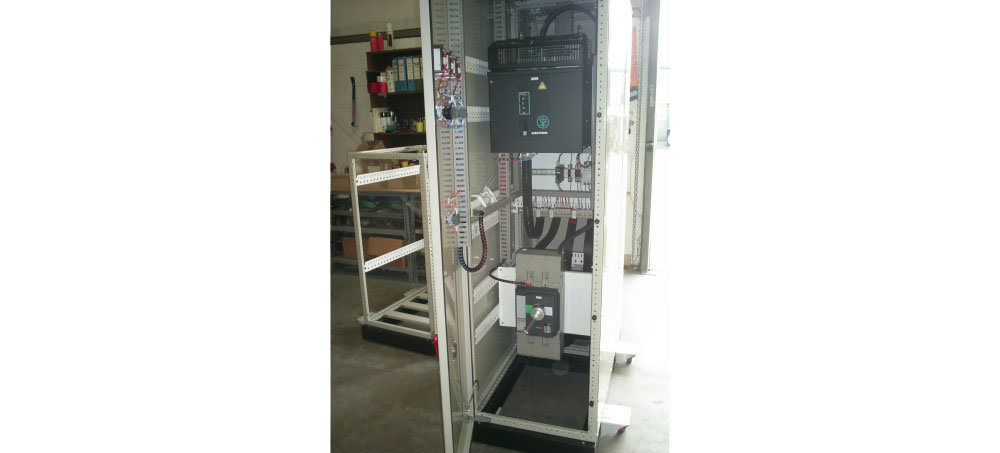

PP1-8
Power distribution panel.

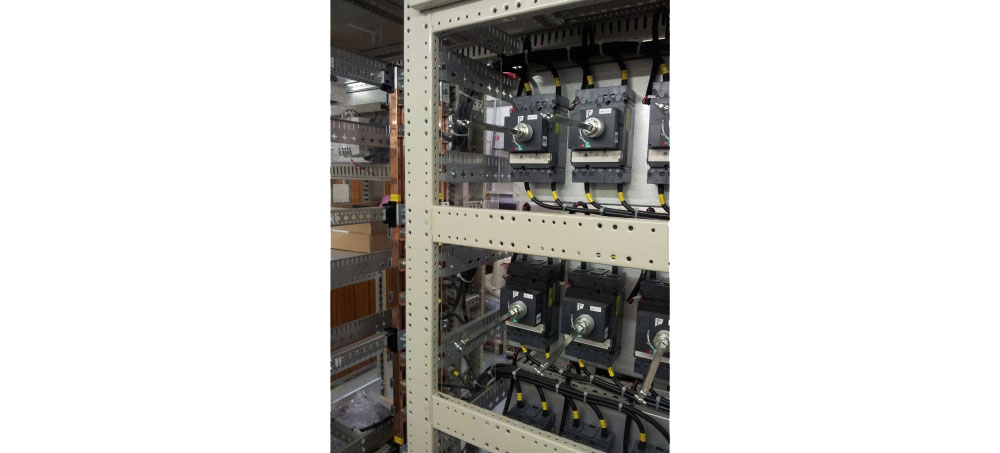

PP1-9
Forehearth power panel distributing to individual zone circuit breakers.

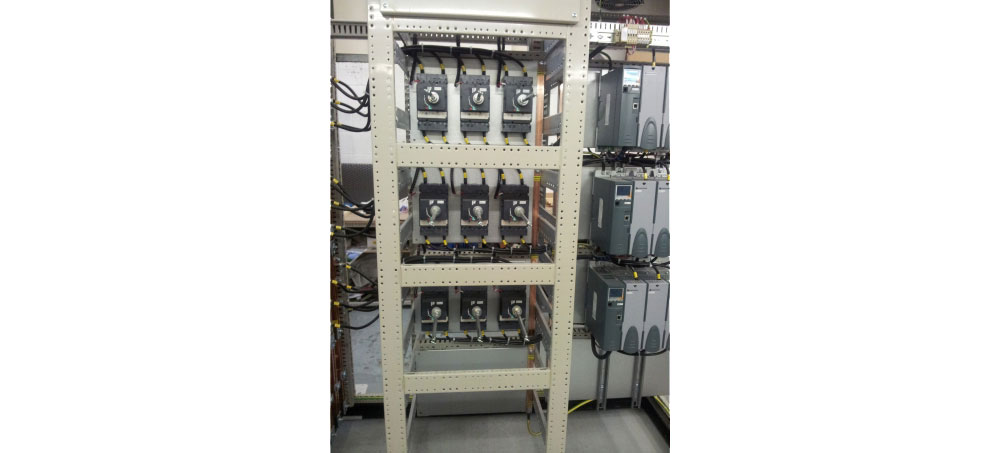

PP1-10
Internal layout of zone MCCB's.
